PHABRIX is pleased to present its first example of a traditional ‘Waveform Monitor’ – but with a twist. Inheriting all of the class leading features and flexibility of the QxL Rasterizer the QxP features an integral 3U multitouch LCD screen and an integral V-Mount or G-Mount battery plate, integral mains PSU and 12v external DC input. You now have 12G SDI and 25G ST 2110 compliance monitoring in a portable form factor using industry standard Camera Batteries*.
With its class-leading Waveforms, the QxP is equally at home on-set in SDR or HDR Productions, Grading, Shading, or QC, MCR, Engineering and R&D environments. The user is free to use the integral screen, or plug in an external HDMI monitor and use the flexible tool layout to view up to 16 instruments simultaneously. A rich set of remote access options including NoVNC and the UI as a 2110-20 flow provides all of the ‘headless’ operational flexibility of a conventional Rasterizer.
The QxP includes SMPTE ST 2110, 2022-6 and a wide range of formats as standard. In-field upgrades are available for a rich set of options: UHD/4K, IP-MEAS, HDR, Dolby E decode, PCAP capture, EUHD and extensive AV-ANC test signal generation. Factory-fitted options provide SDI interfaces or RTE™ real-time SDI eye and jitter analysis, with an engineering grade data view and an optional, advanced SDI-STRESS toolset.
For real-time IP workflows the QxP supports simultaneous Generation and Analysis of HD/3G/UHD/EUHD 2110 payloads on generic SFP28/25 GbE interfaces, with ST 2022-7 Seamless IP Protection Switching (SIPS) and independent PTP followers on both media ports for fully-redundant media network operation – all with AMWA NMOS IS-04 and IS-05.
Whether working in HD, UHD, SDR, HDR, SDI or IP, conventional or remote production, the QxP combines the user-configurability and advanced tools required for full operational flexibility when transitioning to next generation workflows.
*Batteries not included
KEY FEATURES
3U instrument with integral 1920 x 1200,
7 inch LCD touch screen
The QxP’s integrated 7 Inch multi-touch LCD display adds a new control layer to the Qx Series. Building on the Qx Series’ innovative app based GUI, users are now able to configure and monitor all of their required instrumentation from the front display, up to 16 Instruments can be configured in various sizes. Plug in an external HDMI monitor and you have the same experience as if you were using the QxP as a conventional Rasterizer.
Class leading Waveform Test and Measurement Monitoring
The QxP comes with PHABRIX’s new class leading Waveform Monitoring with the flexibility to provide high quality traces for both SDR and HDR sources. Combine this with the CIE chart, false color heat map/highlighting, vectorscope, and support for Generation and Analysis of a wide range of SDR and HDR formats in both SDI and ST 2110, the QxP is equally at home in critical Qc, MCR, Grading and Shading Environments
V-mount/G-mount Battery Plate for external battery and portable operation
The QxP is the world’s first portable, 12G-SDI, 25G-ST 2110, combined waveform monitor, generator and analyzer, with support for mains, external DC power and comes with a V-mount or G-mount battery plate as standard, allowing for the unit to be powered by an external camera battery. This makes the QxP ideally suited for On-Set Production, Outside Broadcast, Commissioning, Engineering and R&D environments
12G-SDI Physical Layer Analysis & Stress
The QxP offers a 12G/6G/3G/HD-SDI physical layer analysis option, including Real-Time Eye technology to instantly highlight any SMPTE compliance issues including eye amplitude, transition times and overshoot. The SDI-STRESS toolset provides both Shorth Mean/Mode, with a histogram overlay and exploration of eye amplitude. PRBS generation and analysis of PRBS-7, 9, 15, 23, 31 allows for deterministic measurement of link Bit Error Rates.
25G-IP/10G-SDI Audio & Video Generation and Analysis
Generate and analyze a comprehensive set of SDR/HDR, YCbCr/RGB, HD/3G/6G/12G SDI and HD/3G/6G/UHD/EUHD IP Formats. The QxP can simultaneously generate and analyse 1x ST 2110-20 video, 4x ST 2110-30/31 audio with up to 80ch and ST 2110-40 ANC ST 2022-7 flows pairs and provide the GUI as a flow (1 x ST 2110-20 and 1 x 2110-30/31 with 2022-7). The SDI pattern-set offers up to 32 channels of embedded audio per link or subfield (up to 128 channels on 12G interfaces) and core full screen SDI Pathological SDI stress patterns as well as allowing the user to define a combination of SDI stress and conventional generator patterns up to full frame
AMWA NMOS Toolset
A suite of AMWA NMOS tools that provide flexibility when integrating with an NMOS controller and associate network Topology. Supported protocols: IS-04 v1.0, 1.1, 1.2, 1.3 IS-05 1.02, 1.1 and IS-09 PTP domain. Provision of both in-band and out-of-band control topologies with manual, mDNS, DNS-SD and DHCP. Senders and Receivers can be independently configured as single or dual NMOS end points.
Analysis and Monitoring Toolset
Picture view, waveform, vectorscope, 32 channel audio metering, detection of Dolby formats, ANC status and payload, on screen display of OP47 and CEA-608 in 708 closed captions and Ancillary Time Code (ATC), and advanced control and logging are all provided as standard.

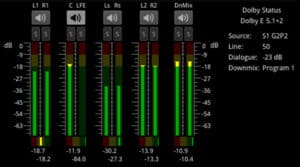

DOLBY® E Decoder & Metadata Analyzer

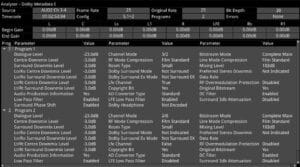

The Dolby E Decoder and Metadata Analyzer option provides a clear and accessible view of the Dolby E metadata present in a selected Dolby E or ED2 audio stream. It also enables you to check the correct timing of Dolby E packets in the audio signal in an SDI or ST 2022-6 broadcast chain. You can check whether the Dolby E is created correctly and transferred transparently by network equipment such as routers, switchers, satellite links, etc.
User-defined Instrument Layout
Out of the box, the QxP offers external media analysis for broadcast operator HD/3G environments via HDMI, with a flexible user-defined instrument layout displaying up to 16 simultaneous windows, and the ability to rapidly change between bespoke layouts for different operational tasks with user presets. Multiple display layouts can be saved as presets. This allows users to save bespoke layouts for different operational tasks; useful for rapidly changing between different screen layouts eg. Audio, HDR or IP focus.
TOOLSETS
Video & Audio Monitoring and Analysis Toolset
[Included as Standard]
Picture Display
-
- Cursors linked to Waveform and Data View
- Action, graphics and user-definable custom safe areas
- 1/16, 1/4 or full size display
Auxiliary Data Decode
- Closed Captions OP47, CEA-608 in 708
- Primary Closed Caption decode picture window
- ANC Timecode with OSD
- Date, V-chip, AFD and Input name
- SCTE 104 indication and logging
Analyzer: Picture Copy
- Secondary closed caption decode: Monitor 608/708 closed captions in a second language, or compare different screen safe areas
- Independently manage overlay elements including; Closed Captions, Picture Safe Areas, V-chip, AFD, SCTE 104, Image Center Crosshairs
Analyzer: Waveform
- YCbCr, YGBR and GBR parade modes
- Cursor linked to Picture and Data View
- Single line mode linked to Picture Cursor
- Configurable H and V Graticules
- User markers
- Overlay, Stacked, Parade, Single line, H & V Mag, Brightness, Persistence and Monochrome controls
- 12-bit processing
Analyzer: Vectorscope
- 75% and 100% Targets for ITU-R Rec. 709, Rec. 2020 and HDR formats
- Custom 'user markers' linked to Waveform
- Centre on target or custom user markers
- 0.5x to 4x Mag, center on chosen target
- Single line mode linked to Picture Cursor
- Tooltip display of Cb, Cr and Hue Angle
- IQ axis on/off
- 12-bit processing

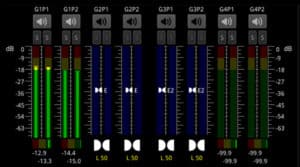

Analyzer: Audio Meters
- 2 meter windows can be opened, each monitoring a block of up to 16 channels at a time, for a total of up to 32 channels of audio metering
- 2110 audio group display across up to 4 flows
- Ballistics: PPM-I, PPM-II, Vu, Vu-Fr, Fast
- Scales: dBFS, dBu -18, dBu -20, BBC, DIN45406, NordicN9
- Adjustable peak hold times: Off, 0.1 s to Inf
- Audio pair correlation meters, numerical level
- Detection of Dolby E, ED2, DD, DD+, DE line pos
- Stereo/mono audio preview bus
Audio Status
- 32 channel indication of audio type and presence, PCM, Dolby DE, DD, DD+
- Decoded channel status information for up to 128 channels
- Clear indication of useful audio parameters including CRCC, PCM/data, sample frequency, word length
- Channel Status data view (Hex)
Loudness Monitoring
- EBU R128 and ITU-R BT.1770
- Indicators for true peak, range, momentary, short term and integrated loudness
- User control of integrated, momentary and short term targets
- User-adjustable true peak alarm threshold
- Loudness logging stored automatically
Analyzer: ANC Status
- SMPTE ST 291 VANC/HANC ancillary data presence/status window
- Grid View – clear visual overview, present/ absent/fault indication
- List View – ANC present list with location and status information for Checksum, Parity, DBN
- Link to ANC Inspector
- Tool tip provides ST 291 ANC type overview
Event Logger
- SDI Input standard/status
- SDI physical layer timing and alignment jitter
- Rest API requests
- IP-Tx, IP-Rx, Flow and SFP records
- Reference Locking
- Audio input presence
REST API
-
- The Qx can be controlled remotely over a network via a REST API
- Integrated control, monitoring and automated manufacturer testing
VNC
- Interface employs VNC technology to deliver 16 simultaneous scalable instrument windows over a remote network
ST 2110 and ST 2022-6 Monitoring
[Included as Standard]
SFP IP Network
- Reporting of presence of SFPs, SFP MAC and IP addresses (flow source IP address), and interface status
- Tx and Rx packet counters for indication of traffic activity
- User configuration of SFP IP Addresses, Masks and Gateway Addresses
SFP Information
- SFP status information for monitoring the physical network connection
- Indication of SFP vendor and laser characteristics
- RX and TX power for debug of fibre connectivity
IP Receive
- Reporting of the IP Flows available to the receiver and user selection of the required flows
- Indication of Qx locked status, Protocol, Src and Dst IP and Port Numbers, SSRC, Packet Counts, Sequence, payload and CRC errors
- Configuration of Multicast Destination IP addresses and subsequent Multicast Join requests
2110: 2 Port PTP
- Control of PTP domain and communication mode (multicast, hybrid w/o negotiation)
- Indication of lock status
- Grandmaster information including master ID and time source
- Indication of estimated frequency and phase lock offsets
- Indication of one step or two step traffic
- 2 independent PTP followers
2110: 2022-7 Status
- Indication of the health of ST 2022-7 seamless protection
- Warning of ST 2022-7 flow-pair mis-match
- Warnings of errors on flows and errors on reconstructed output and error rates/second
- Relative measure of Path Differential of flows on SFPB (Blue Network) relative to SFPA (Amber Network)
- Class A, B,C, D markers
2110: IP Flow Latency
- Indication of media latency
- Relative timing of audio and ANC flows wrt video
- Indication of relationship of underlying media to PTP
- External analog reference timing wrt PTP
2110: Format Setup
- User-configurable allocation of ST 2110 packet IDs
- User-configurable video format parameters for ST 2110-20 flows
- User-configurable audio format parameters for ST 2110-30 flows includes packet time and channel count
- Automatic detection of audio format,channel count and packet time
AMWA NMOS
[Included as Standard]
NMOS Receiver Status
- Qx/QxL/QxP at a glance overview of the state of the receiver Master Enable, RTP Enables and SDP records for each media interface
- Available in 1/16 view - toggles with the SDP view
- Display of the Master, RTP and SDP of all Receiver flows
NMOS Receiver SDP
- Qx/QxL/QxP display of the active receiver SDP record
- User configurable colour highlighting for improved readability
- Display adapts with NMOS Dual or Single receiver configuration (Dual shown)
NMOS Receiver IS-05
- Qx/QxL/QxP display of the active receiver IS-05 parameters
- Individual tabs for the display of the IS-05 parameters for each receiver flows
- Human readable tree view of the IS-05 JSON with expand/collapse for rapid navigation
- Display adapts with NMOS Dual or Single receiver configuration (Dual shown)
NMOS Sender Status
- QxL/QxP, at a glance overview of the state of the Sender Master Enable, RTP Enables and SDP records for each media interface
- Available in 1/16 view - toggles with the SDP view
- Display of the Master, RTP and SDP of all Generator flows
- Display of the Master, RTP and SDP status of all monitor GUI Interface flows
NMOS Sender SDP
- QxL/QxP display of the active sender SDP record
- User configurable colour highlighting for improved readability
- Display adapts with NMOS Dual or Single receiver configuration (Single shown)
NMOS Sender IS-05
- Qx/QxL/QxP display of the active sender IS-05 parameters
- Individual tabs for the display of the IS-05 parameters for each generator and GUI sender flows
- Human readable tree view of the IS-05 JSON with expand/collapse for rapid nav
- Display adapts with NMOS Dual or Single receiver configuration (Single shown)
NMOS Setup
- Manual, mDNS or DNS-SD discovery of the Registry with DHCP
- Status reporting of registration and DNS domain
- Independent configuration of sender and receiver as single or dual NMOS endpoints
- NMOS node Enable/Disable
- IS-09 PTP Domain Enable/Disable
2110 Format Support
- At a glance comparison of auto-detected, SDP and manual format settings
- User-configurable video format parameters for ST 2110-20 flows
- User-configurable audio format parameters for ST 2110-30/31 flows includes packet time and channel count
- Automatic detection of audio format, channel count and packet time
I/O and Reference Configuration
[Included as Standard]
SDI Video Timing & System Reference
- Measurement of the timing of inputs against reference
- Indication of reference status and stability
- Indication of the relative co-timing of input SDI channels
- Graphical and numeric display
System IO
- Shows the status of signal inputs and outputs, external reference, cable length, and connector details
- SDI mode: Select BNC or SFP I/O, cable type, loop through and generator copy outputs
- IP mode: Active IP SFP receive inputs and transmit outputs are indicated
- Qx, QxL-01, QxL-01E Only
AES IO Config
- 4 versatile bi-directional AES unbalanced interfaces
- Audio meter monitoring pair, or generator audio outputs or an AES input
- SDI Input to AES Output audio conversion for both PCM and Dolby encoded audio
- AES Input signals can be routed to other AES outputs providing a single loop output or up to 3 copy outputs
Analyzer: Vid. Standard
- Display of detected SMPTE S352 Payload ID for each SDI Link and Subframe
- Manual over-ride of S352 ID
- Selection of SMPTE video format
- Indication of S352 errors
- Qx, QxL-01, QxL-01E Only
CRC Analysis
- Check for CRC errors on Y, C and ANC
- Reporting of the number of SDI input failures, the last failure time, total analysis time and error rates
- Detect active picture changes and view the active picture CRC to observe any changes in the expected active picture CRC value
- SDI switch line CRC masking control, for SMPTE RP168 compliance checking
Stats - SDI In
- Cable length indication
- Indication of data rate and clock divisor
- Reporting of active and total pixel and line counts
- Y and C payload ID
Data View Analyzer with ANC Inspector
[Included as Standard]
Analyzer: Data View
- Allows analysis of complex faults
- Detailed view of data words in the SDI stream with tooltip hint
- Navigate function for rapid access to a required line, pixel or TRS word
- Color coding to help identification
- Cursor linked to Picture and Waveform
ANC Inspector
- Ancillary data packet analyzer
- Link from ANC Status window
- User-defined DID/SDID windowed search
- Trigger on error, single shot, continuous
- ANC packet capture with Hex view
- ANC packet decode view
Remote Control
[Included as Standard]
noVNC
- Browser remote access using noVNC technology to deliver 16 simultaneous scalable instruments over a remote network

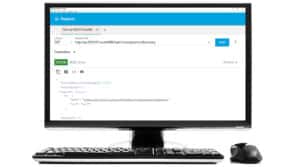

REST API
- Qx/QxL/QxP can be controlled remotely over a network via a REST API
- Integrated control, monitoring and automated manufacturer testing
Event Logger
- SDI Input standard/status
- SDI physical layer timing and alignment jitter
- Rest API requests
- IP-Tx, IP-Rx, Flow and SFP records
- Reference Locking
- Audio input presence
LLDP
- Identify port and device to which the Qx/QxL/QxP interfaces are connected
- Restrict information communicated over LLDP for IT security purposes
- Also available in ST 2110 and ST 2022-6 boot modes
MGMT Interface Config
- Manual or Dynamic Addressing modes
- mDNS and DNS
- Select Default Gateway from Media or Management interfaces
- Control access to REST API and VNC
USB File Manager
- Copy presets, instrument logs, screenshots and user TIFF images to and from USB memory stick
- Delete selected files
Audio and Video Generation
[PHQXPO-GEN]
2110 Video/ANC Generation (QxL Only)
- 2110: Generate ST 2110/2022-7 video flows, including test pattern and monitor (GUI) as flows
- 2110-20: 2K/HD, 4K/UHD video flow generator (422/444, YCbCr/RBG, 10/12-bit
- 2110-40: 1 x ANC flow generator
- Timecode Generator ATC_LTC, ATC_VITC, PTP locked
- Moving test patterns import/display TIFF images
2110 Audio Generation (QxL Only)
- 2110: Generate ST 2110/2022-7 audio flows
- 2110-30/31: Up to:
- 80 audio channels 2110-30 at 125μs
- 60 audio channels 2110-31 at 125μs
- 10 audio channels 2110-30 at 1ms
- 7 audio channels 2110-31 at 1ms
SDI Video Generation
- 12G/6G/3G/1.5G 4K/UHD and 2K/HD SDI signal generation
- Support for Single, Dual, Quad link SDI formats. Square division, 2SI, Level A & B
- 422, 444, 4224 and 4444, YCbCr and RGB formats, 10/12 bit
- Moving test patterns, import/display TIFF images
SDI Audio Generation
- Choice of fixed tones or chromatc scale – tohelp with channel identification
- Choice of fixed or ramp levels – to help with channel identification
- Custom config of number of active audio groups and channels
- Master gain control
- ST 2022-6: 32 channel audio generation, 128 channel embedder
SDI Pathological Generation
- Conventional SDI pathological stress patterns, Eq, PLL and CheckField
- New proposed SMPTE combined pathological stress pattern: Eq + PLL + Color Bars + Clock
- Define a percentage combination of SMPTE or SDI pathological and conventional patterns up to full frame
SDI Generator Status
- Confirms generated Video Standard and Test Pattern details
- BNC output, SFP output and sub image/full image mapping information
- Video Reference, output offset adjustment and Jitter Insertion (with optional SDI-STRESS Toolkit) details
Analyzer - Video Standard
- Display of detected SMPTE S352 Payload ID for each SDI Link and Subframe
- Manual over-ride of S352 ID
- Selection of SMPTE video format
- Indication of S352 errors
- Qx, QxL-01, QxL-01E Only
CRC Analysis
- Check for CRC errors on Y, C and ANC
- Reporting of the number of SDI input failures, the last failure time, total analysis time and error rates
- Detect active picture changes and view the active picture CRC to observe any changes in the expected active picture CRC value
- SDI switch line CRC masking control, for SMPTE RP168 compliance checking
Stats - SDI In
- Cable length indication
- Indication of data rate and clock divisor
- Reporting of active and total pixel and line counts
- Y and C payload ID
4K/UHD ST 2110 Extended Format Support
[PHQXPO-EUHD]
EUHD Format Support
- Analysis of 2110-20 flows at UHD/4K 444 (RGB/YCbCr) 8/10/12 bit 47.95P-60P
- 4K60P RGB:12 Mean bandwidth approx. 20Gbps (equivalent to a peak bandwidth of around 21Gbps for a gapped flow)
IP Network Traffic Measurement
[PHQXPO-IP-MEAS]
Inter-packet Timing
- Stream health reporting using histogram to visualize the distribution of inter-packet arrival times
- Simultaneous reporting of ST 2022-7 primary and secondary flow
- Packet counts (log or linear scales) mapped against arrival times (μs)
- Easy diagnosis of congestion with max, mean and min inter-packet arrival times
ST 2110-21
- ST 2110-21 measurement of Network Compatibility Model (Cinst) and Virtual Receiver Buffer Model (VRX)
- User control of VRX buffer read-schedule timing
- User control of Cinst buffer drain rate
Advanced Media Timing - Video
- Time of First Received Packet of a Frame (video timing)
- Receiver Buffer Margin wrt TRO default
- Sender RTP offset
Advanced Media Timing - Media Latency
- Numerical display of Mean, Min and Max latency measurements
- Measured RTP clocks/s, Timestamps/s and RTP clocks/timestamp interval
- Numerical display of Video to Audio and ANC relative latency measurement
Analyzer - Video Standard
- Display of detected SMPTE S352 Payload ID for each SDI Link and Subframe
- Manual over-ride of S352 ID
- Selection of SMPTE video format
- Indication of S352 errors
- Qx, QxL-01, QxL-01E Only
10G/25G PCAP Tool
[PHQXPO-IP-PCAP]
25G PCAP Tool
- Full line-rate capture at 25Gbps on a single interface, back-to-back packets
- Capture data on one or both media interfaces simultaneously
- User control of packet capture size - e.g. Full payload or headers only with user control of the Packet Capture size (12-1518 Octets)
- Manual Start-Stop, Auto Start-Stop at specified time, Capture Start Delay
- User controls for auto stop: No of Packets, File size, Duration
- Saves to USB stick with the option of Browser File transfer off the unit
- 4GB PCAP max. file size on QxL/QxP
12G-SDI Physical Layer Analysis
[PHQXP01E-3G]
SDI Eye Analysis
- Real-Time Eye (RTE) for testing SMPTE compliance with indication of DC offset
- Automatic measurements of: DC level, amplitude, rise and fall time, rise/fall overshoot, visual rise time indication
- Amplitude and time histograms
- Single or multiple eyes with choice of color, heat-map overlay and infinite persistance
- Timing and Alignment jitter thermometers
- User-definable time measurement cursors
SDI Jitter Analysis
- Realtime SMPTE jitter measurements down to 10Hz
- 10Hz, 100Hz, 1kHz, 10kHz, 100kHz filters
- H, 2H, F, V Trigger
- Persistence control 'none' to 'infinite'
- Infinite persistence modes
- +/- 0.25 to +/- 64 UI vertical scale adjustment
- Jitter amplitude histogram
SDI-Stress Testing
[PHQXPO-SDI-STRESS Requires PHQXP01E-3G]
Adv. Eye Analysis
- User-adjustable Measurement Window
- Eye Time Cursors (Two)
- User-adjustable windowed histogram (blue)
- Eye Time Cursor Readings & Time Delta
- Automatic Measurement of Transition Times and Transition Time Delta
- Measurements in Blue Taken from User-adjustable Measurement Window
- Automatic Amplitude Measure with Mode or Short Mean
Adv. Generator Tools
- Control of jitter insertion frequency and amplitude
- SDI scrambler and sync bit Insertion on/of
- SDI Bit Error (BER) insertion tool
- Control of SDI driver amplitude +/-15%
- Control of pre-emphasis, rise/fall time
PRBS Analyzer
- Indication of PRBS cumulative received data and PRBS type
- Generation of PRBS-7, 9, 15, 23, 31
- Reported cumulative errors
- Calculated Bit Error Rate (BER)
Pathological Detector
- Generator status indication of rate at which the video pattern generator is creating SDI pathological conditions
- Indication of PLL and EQ pathological rates/ second
- Detection on each active SDI link
- Realtime GPI outputs of pathological detect for external equipment triggering
High Dynamic Range (HDR) visualization & analysis
[PHQXPO-HDR]
False Color Highlighting
- Programmable ‘Heat Map’ to highlight luminance zones providing quick identification of shadows, skin or mid-tones or specular highlights
- 7 simultaneous programmable color overlay bands
- Presets for HDR and SDR ranges plus user custom
Analyzer: CIE Chart
- CIE 1931 x,y display
- Single line mode linked to picture cursor
- Pan and zoom
- ITU-R BT. 709, BT. 2020 and ST 2086 gamut overlays
- Tooltip co-ordinate display
- Support for BT. 1886, BT. 2100 HLG and PQ, Sony S-Log3, SR Live
HDR Waveform
- Waveform HDR graticules with Nits (Cd/m2)
- BT. 2408 diffuse white markers
- Support for BT. 1886, BT. 2100 HLG and PQ, Sony S-Log3, SR Live
Dolby Decoder and Metadata Analyzer
[PHQXPO-DOLBY]
Dolby Metadata Analyzer
- Displays the Dolby E metadata present in the selected Dolby E or ED2 audio stream
- Enables you to check the correct timing of embedded Dolby E and ED2 in SDI and 2022-6 payloads
- Check that the Dolby E metadata has been created correctly for multiple programs using the easy to read metadata display
- You can choose to monitor the Dolby audio from any of the SDI, 2022-6 or 2110 input embedded audio pairs/channels or the AES input
- Dolby stream CRC error detection and display
Dolby Detection in Audio Metering
- Displays 16 audio meters together with peak level indicators and indication of audio pair correlation
- Dolby E, Dolby D and Dolby D+ streams are detected by the system with Dolby stream presence indicated in blue
- For an SDI or 2022-6 signal carrying embedded Dolby E audio, the Dolby E timing line number is also displayed below the detector, either as an absolute value or relative to the Ideal line number specified for that video standard
Dolby Decoder Metering and Status
- When the Dolby E decoder is selected as the metering source (2110, SDI or 2022-6 mode), the view of the analyzer changes to display the 8 channels of decoded Dolby E audio as well as the stereo 2.0 downmix
- The meter channel identification is automatically configured from the Dolby program metadata
- Display of Dolby E source, line positioning (SDI, 2022-6), dialogue level and downmix program source
Packet Interval Profile Generator
[PHQXPO-IP-NGT Requires PHQXPO-GEN]
2022-6: IP Transmit
- Configuration of Transmission flow addresses, port numbers and SSRC
- Inter-packet jitter onto outgoing flow
- Gaussian or uniform distribution
- Flow control on/off
READY TO TRANSFORM YOUR TEST & MEASUREMENT TOOLKIT?
SPECIFICATIONS
| Formats Supported | QxP 25G/12G |
| Core IP Formats: 3G / HD / SD* ST 2110-20/-30/-31/-40 / 2022-7, 2022-6 | Standard |
| ST 2110-30/-31 | Class C |
| ST 2110 UHD / 4K Formats | Software Option |
| ST 2110 RGB UHD / 4K EUHD Formats | Software Option |
| Core SDI Formats: 3G / HD / SD* | Factory Option |
| 12G / 6G / 3G / 1.5G-SDI UHD 4K (Requires Core Formats) | Software Option |
| Software Options Supported | |
| Audio/Video Generator (SDI, ST 2022-6, ST 2110) | Software Option |
| Eye and Jitter Toolset | Software Option |
| UHD/4K Upgrade | Software Option |
| SDI-STRESS Testing Toolset | Software Option |
| Data View Analyzer with ANC Inspector | Standard |
| HDR/WCG Support | Software Option |
| Dolby E Analysis | Software Option |
| IP ST 2022-6 Decap, ST 2110-20/30/31/40 Decap with ST 2022-7 and PTP | Standard |
| IP Network Traffic Measurement Toolset (ST 2110) | Software Option |
| IP Network Traffic Generation Tooslet (ST 2022-6) | Software Option |
| IP Network Traffic Generation Tooslet (ST 2110) | Software Option |
| PCAP | Software Option |
| EUHD Formats over 25G 2110-20 | Software Option |
| SDI Inputs/Outputs | |
| 4 x SDI inputs, SD*/HD/3G, 75 ohm BNC | Factory Option |
| 2 x SFP+ MSA / Non-MSA cages (supports 12 Gbps copper or fiber SDI interfaces) | Factory Option |
| 4 x SDI outputs, SD*/HD/3G, 75 ohm BNC | Factory Option |
| SDI I/O to 6G/12G (Requires Factory SDI Option) | Factory Option |
| RTE™ Real-Time Eye input (12G/6G/3G/HD/SD*-SDI) x 1 (SDI input A) BNC |
Factory Option |
| Ethernet IP inputs/outputs (accepts generic SFPs) | |
| 2 x SFP28 10/25G cages | Standard |
| 2 x QSFP28 10/25/40/50/100G cages | Reserved |
| Upgrade to 25 GbE support | Software Option |
| Audio Inputs/Outputs | QxP 25G/12G |
| 4 x 75 ohm AES selectable I/O | 26 pin HD D-Type |
| 1 x Stereo analog audio output | 26 pin HD D-Type |
| 8 channel 48 kHz PCM audio | HDMI and SDI Instrument Out |
| User Interface | |
| HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A | HDMI 2.0b |
| SDI 3Gbit instrument out, 1920 x 1080, 4:2:2 YCbCr | Micro BNC |
| User Interface Video/Audio | 2110-20 / 2110-30/-31 |
| Remote browser GUI access | noVNC |
| Reference | |
| Reference input, Tri / B&B with cross-lock | 75 ohm Micro-BNC |
| Networking & Control | |
| 10/100/1000 BASE-T | RJ45 |
| 8 x bi-directional GPI (26 pin high density ‘D’ Type socket) | 26 pin HD D-Type |
| Audio Monitoring | |
| Front Panel Speaker | Integral |
| Headphone Socket | ¼ inch jack |
| Form factor | |
| Size | 211x132x305 mm |
| Weight | 4.1kg (Excl. Battery) |
| Electrical | |
| Power consumption | 110W typical, 160W max |
| IEC Power Input (Internal power supply) | 12 V nominal (10 to 18 V) |
| 4 Pin XLR Power Connector | 90 to 264 VAC, 120 W |
| V-Mount Battery Plate | Factory Option |
| G-Mount Battery Plate | Factory Option |
| Warranty | |
| Warranty (1 year) | Standard |
| Extended Warranty (3 – 5 years) | Optional |
*Upcoming software release
ORDERING
| QxP Chassis (includes PHQXO-IP-STND) | |
| PHQXP-V | QxP 3U SD*/HD/2K 10GbE IP Waveform Monitor/Analyser, V-mount |
| PHQXP-G | 3U SD*/HD/2K 10GbE IP Waveform Monitor/Analyzer, G-mount |
| PHQXP01-3G-V | 3U SD*/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, V-mount |
| PHQXP01-3G-G | 3U SD*/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, G-mount |
| PHQXP01E-3G-V | 3U SD*/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, Eye/Jitter, V-mount |
| PHQXP01E-3G-G | 3U SD*/HD/2K 10GbE IP/SDI Waveform Monitor/Analyzer, Eye/Jitter, G-mount |
| QxP Chassis Upgrade (Return to Factory) | |
| PHQXPM-01 | QxP SDI I/O return to factory upgrade (req. PHQXP) |
| PHQXPM-01E | QxP SDI Eye/Jitter return to factory upgrade (requires PHQXP01-3G) |
| QxP IP Options | |
| PHQXPO-IP-25G | 25GbE media network (requires 2x PHSFP-25G-SR or 2x PHSFP-25G-LR) |
| PHQXPO-IP-MEAS | IP Measurement 2110-21, PIT histograms, timing |
| PHQXPO-IP-PCAP | PCAP 2x25Gbps line rate capture tool, 4GB max. |
| PHQXPO-IP-NGT | 2022-6 IP Network traffic Generator Tool (requires PHQXPO-GEN) |
| PHSFP-10GE-SR | SFP+ 10GBASE-SR Ethernet MM 850nm 300m |
| PHSFP-10GE-LR | SFP+ 10GBASE-LR Ethernet SM 1310nm 10km |
| PHSFP-25GE-SR | SFP28 25GBASE-SR Ethernet MM 850nm 100m |
| PHSFP-25GE-LR | SFP28 25GBASE-LR Ethernet SM 1310nm 10km |
| QxP SDI/IP Software Options | |
| PHQXPO-DOLBY | Dolby E Decoder, Metadata Analyser, LtRt/LoRo downmix, metering |
| PHQXPO-GEN | SDI/IP AV Test Signal Generator (SDI requires PHQXP01-3G or PHQXP01E-3G) |
| PHQXPO-UHD | 2K Extended + UHD/4K IP/SDI (SDI requires PHQXP01-3G or PHQXP01E-3G) |
| PHQXPO-EUHD | Add RGB, 12b, 444, 48-60Hz formats to ST2110 (requires PHQXPO-UHD) |
| PHQXPO-HDR | HDR/WCG, CIE1931, HDR Heat map (PQ, HLG, S-Log3, SR Live) |
| QxP SDI Software Options | |
| PHQXPO-SDI-STRESS | 12G-SDI Stress Test Toolset (req. PHQXP01E-3G, PHQXPO-UHD, PHQXPO-GEN) |
| PHSFP-RT12-1310 | SFP+ SM(10km) LC Non-MSA, Tx 1310nm, Rx 1260-1620nm 12G/6G/3G/HD/SD-SDI |
| QxP Fitting Kits & Cables | |
| PHQXC-1 | 12G-SDI Test Cable 1m |
| PHQXK7 | 3U 19 inch rackmount kit (1x QxP Chassis)*** |
| PHQXK8 | 3U 19inch rackmount kit (2x QxP Chassis)*** |
| PHQXK9 | QxP desktop kit (adjustable feet plus handle)*** |
| Qx Extended Warranty | |
| PHQXP-3YEAR | PHQXP Upgrade from 1 to 3 Year Warranty (excludes SFP) |
| PHQXP-5YEAR | PHQXP Upgrade from 1 to 5 Year Warranty (excludes SFP) |
| PHQXP01-3YEAR | PHQXP01 Upgrade from 1 to 3 Year Warranty (excludes SFP) |
| PHQXP01-5YEAR | PHQXP01 Upgrade from 1 to 5 Year Warranty (excludes SFP) |
| PHQXP01E-3YEAR | PHQXP01E Upgrade from 1 to 3 Year Warranty (excludes SFP) |
| PHQXP01E-5YEAR | PHQXP01E Upgrade from 1 to 5 Year Warranty (excludes SFP) |
*Upcoming Software Release
**One year warranty included as standard
***Availability TBC
