SxA

Portable 3G/HD/SD Generation, Analysis & Video/Audio Monitoring
VIEW BROCHURELIVE DEMO

Extensive Video and Audio Toolset

The SxA offers advanced signal generation, analysis and monitoring capabilities. There’s support for SMPTE compliance testing with over 350 different formats. An extensive array of video and audio tools includes a signal generator with moving test patterns, a high performance waveform, and ANC/VANC inspector. The SxA also offers 16 channel audio generation and metering with support for Dolby® E, Dolby® Digital and Dolby® Digital metadata and bitstream analysis.

The SxA also now offers automatic link detection of single links of multi-link 3G and HD based UHD formats.

SxA KEY FEATURES

EXTENSIVE VIDEO TOOLSET

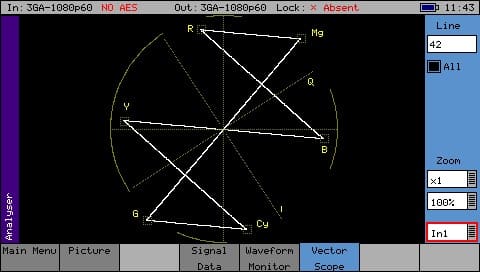

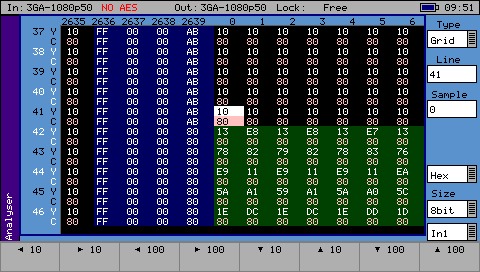

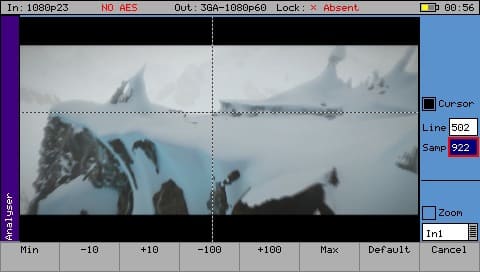

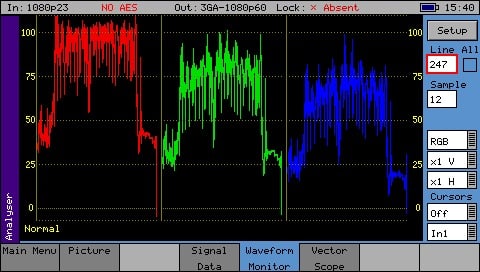

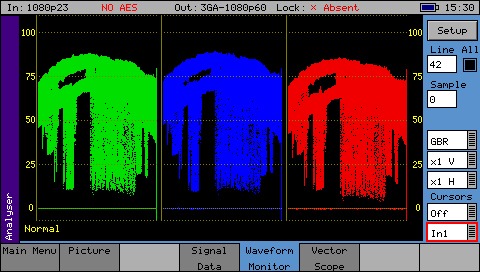

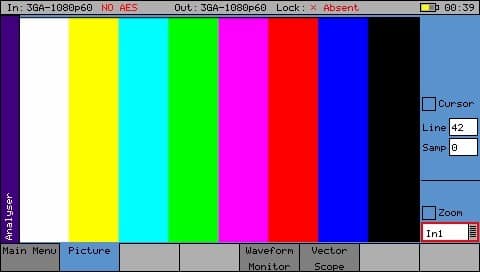

With simultaneous signal generation and analysis, its built-in core toolset includes a multi-format waveform, vectorscope and video display, plus data view and VANC/ANC inspector. Over 350 formats are supported for compliance monitoring. Signal generation offers 32 test patterns, including pathological.

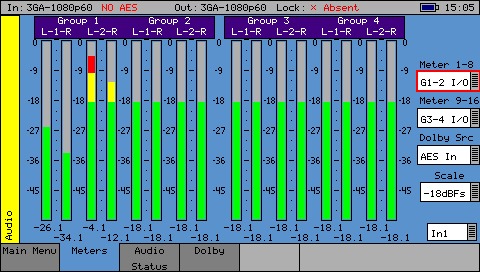

MULTI-CHANNEL AUDIO ANALYSIS

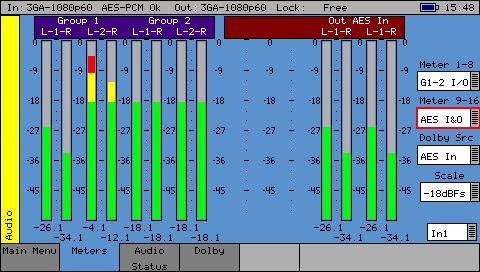

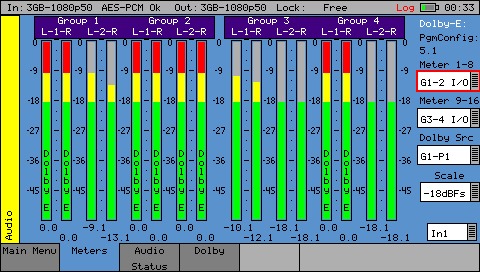

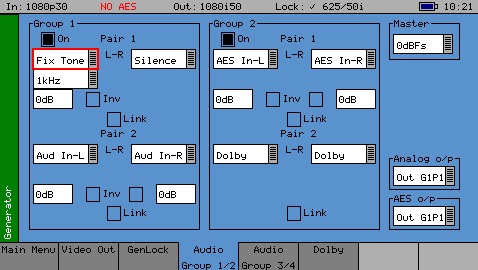

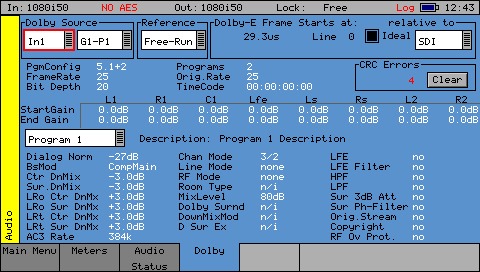

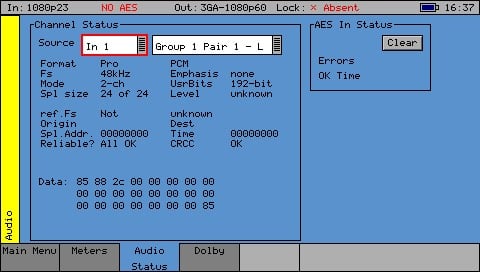

The SxA features support for 16-channel audio metering and bitstream generation and analysis of Dolby E, Dolby Digital and Dolby Digital Plus. Embed a single external 48kHz synchronous AES stream into the generated video stream, as well as extract embedded audio and export it via the AES output.

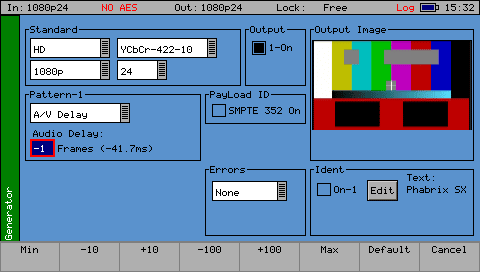

AV DELAY GENERATION AND ANALYSIS

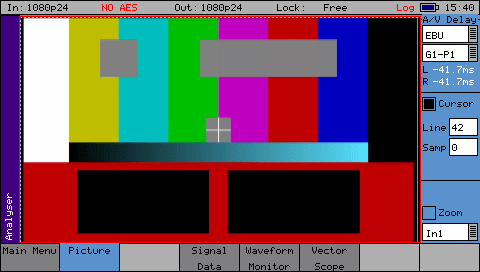

AV Delay Generation and Analysis offers an end-to-end solution for the measurement of Audio to Video differential delay through a broadcast system. The tool  provides a realtime update of the differential delay between the video content and the selected audio channel pair to measure the propagation (latency) or pipeline delay.

ULTRA PORTABLE, RUGGED DESIGN

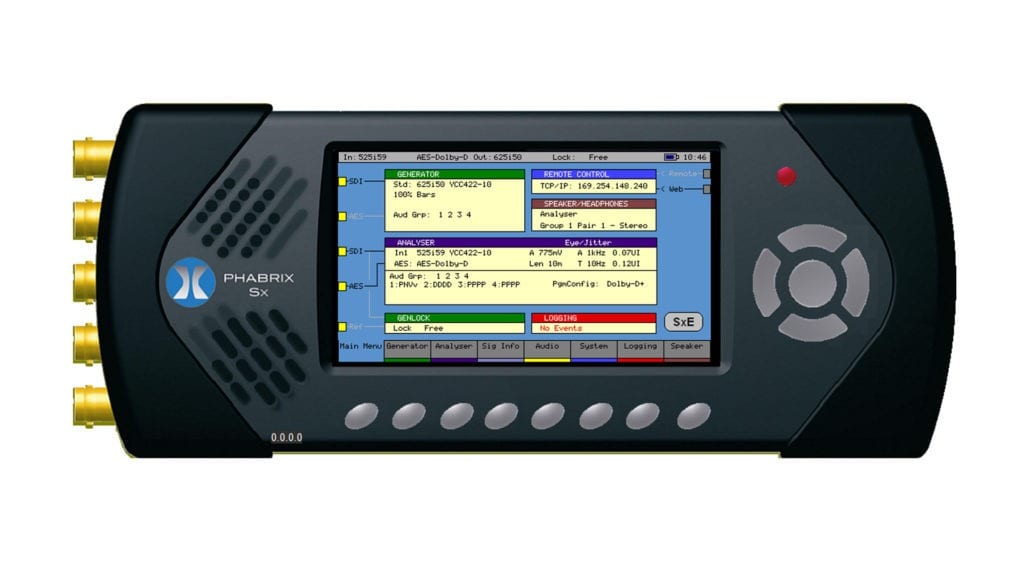

The SxA offers great mobility with a lightweight aluminium case with integral, high quality screen for instrument display and video monitoring. The generator/ analyzer operates via rechargeable battery for up 2 hours, and can also be powered by the mains to offer flexible operation.

ENHANCED REMOTE CONTROL

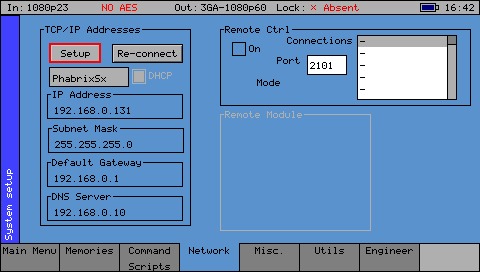

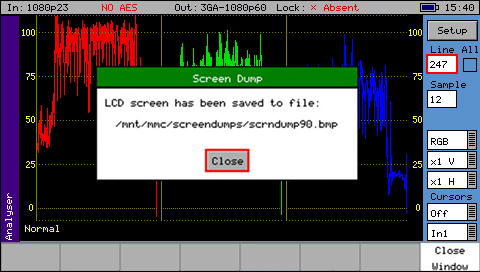

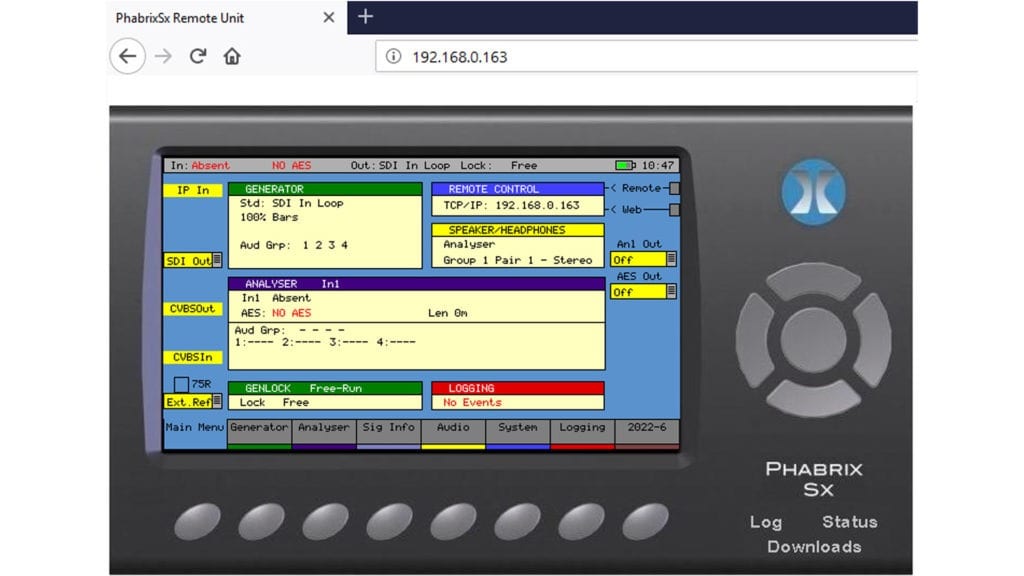

The SxA features a TCP/IP interface for remote control, automated testing, engineering support and fault analysis. Comprehensive status logging with custom reports, together with instrument picture capture to simplify fault finding is also included.

FAST, INTUITIVE OPERATION

With its color coded GUI that simplifies signal and instrument selection, the Sx Series of generation, analysis and monitoring instruments offer unmatched ease of use for busy engineers who need to diagnose faults and assure compliance quickly.

SxA TOOLSETS

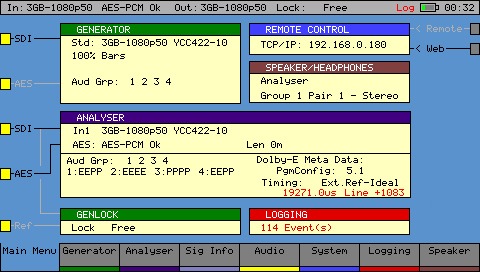

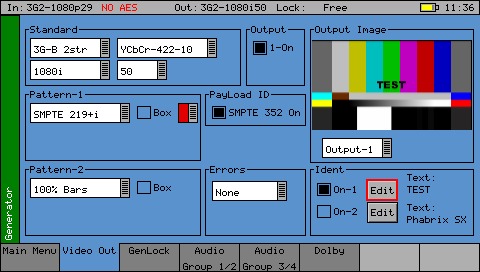

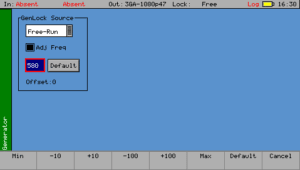

SxA Generator

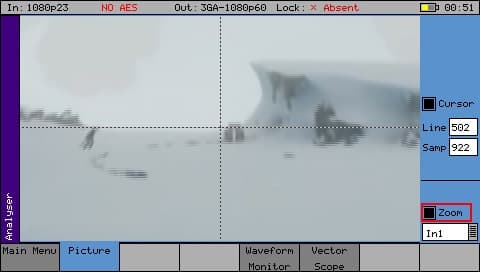

SxA Analyzer

SxA Control

SxA Audio

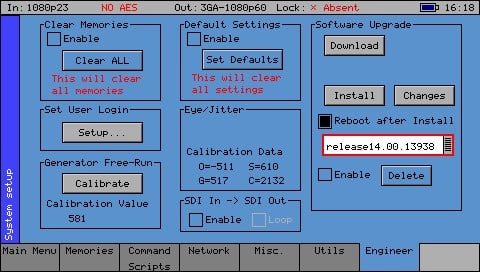

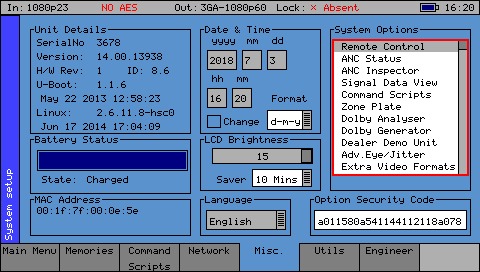

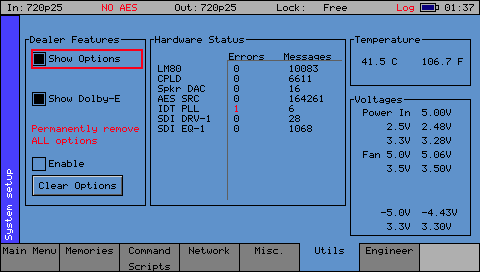

SxA System

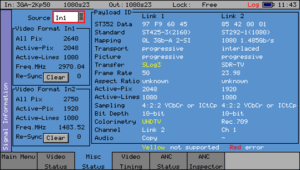

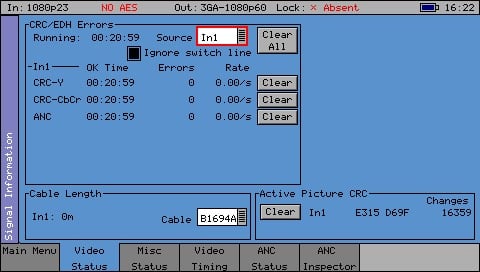

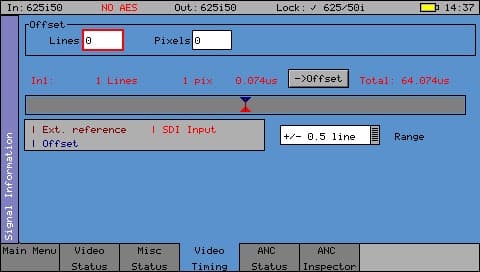

SxA Signal

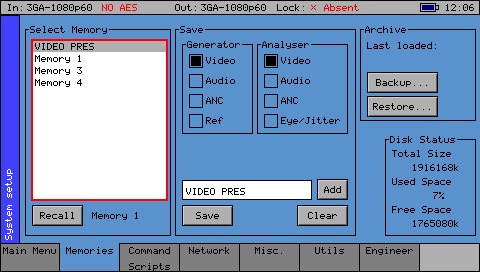

SxA Logging

X

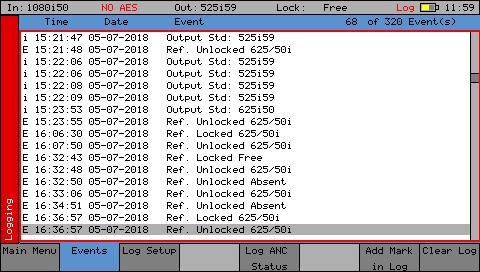

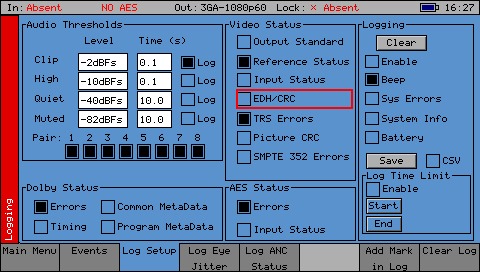

ANC Log Setup

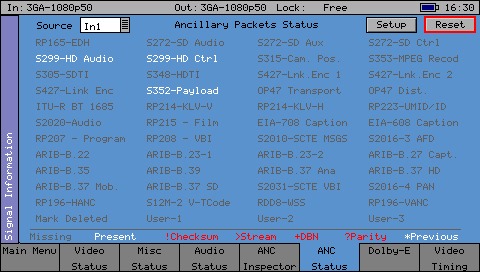

  • The Log ANC Status menu allows customization of which ANC packets to log for changes in status (e.g. Present, Checksum Error, Missing, Parity Error)
  • Logging of Dolby and AES Status as well as device system errors
  • Control of logging duration

READY TO TRANSFORM YOUR TEST & MEASUREMENT TOOLKIT?

SxA SPECIFICATIONS

Monitor Details
Display resolution 480 x 272 pixels auto scaling
Display type 16:9 24 bit color TFT
Display size 95 x 54 mm
Processing All digital
Video
SDI 3G-SDI, HD-SDI SD-SDI
Outputs/Inputs 1 x 75 Ohm BNC
Genlock Bi/Tri/SDI with cross lock
Adjustable timing 0 to 1 Frame
Text Ident Yes with font, color and point size
Logo ident Yes
EDH Yes (SD-SDI)
Video Test Signal
Resolution 10 bits
Static Test patterns 32+ including full frame
Moving Zone Plate Yes
User defined DPX,YUV,TGA,BM
Formats To be supplied on request
Eye bit rates 3Gbps, 1.485Gbps, 270 Mbps
Jitter SMPTE specification filters
Jitter thermometers Alignment, Timing
Audio
Internal speaker 0.5 watts
Audio DAC 24 bit stereo
Headphone socket 3.5 mm with auto line out
Generator/Monitor 48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 channel embedded audio Yes
AES Output/Input 1 x 75 Ohm BNC
Audio Test Signal
Fixed tones 17
Variable tones 1 Hz-24 Khz in 1Hz steps
Intermittent Tone Yes
White noise generation Yes
Audio levels variable 0 to -100dB in 1dB steps
Audio phase invert Yes
General
Navigation panel 5 menu keys 8 custom select/program
Integral battery supply Yes
Internal Storage 8GB (upgradable)
Remote control Web browser interface
Ethernet/USB Yes
Carry case Included
AC power supply Included
Security Kensington lock fitting
Size/Weight 0.7kgs, H:92mm W:225mm D:42mm



SxA ORDERING

SxA
PHSXAES
SxA Handheld Instrument – SD/HD/3G Handheld complete unit
Software Options
PHSXO-AVD
AV Delay Analysis – Analyser supports EBU and LAWO AV delay sequences
PHSXOS

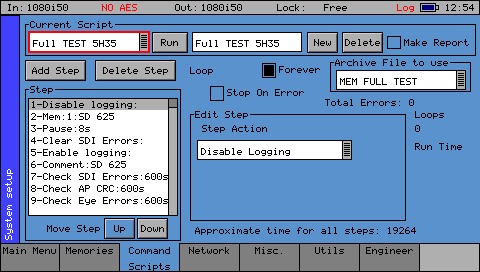

* Command Scripts + Reports – Repeat testing + create print report
PHSXOSD
* SDI Data display + VANC/ANC Inspector – Detailed SDI data display
PHSXOR
* Enhanced Remote Control – TCP/IP sockets based remote control
PHSXOZ

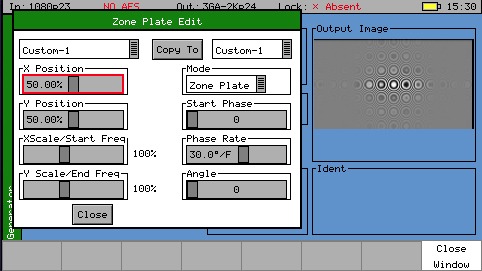

* Zone plate generator – Programmable zone plate generator
PHSXOF

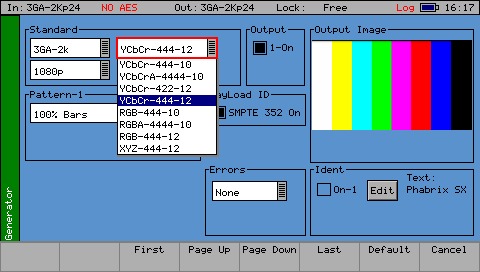

* Advanced video formats + 2K – 422/444, YUV/RGB, 10/12 bit, SMPTE 428-9 D-Cinema/SMPTE ST 2048-2:2011
PHSXO-DAG

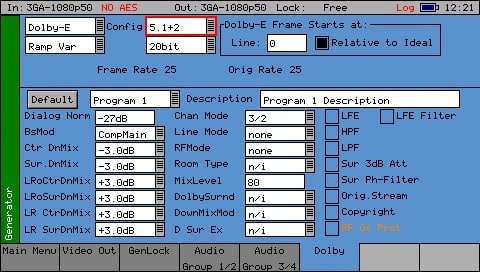

* Dolby E/D/D+ analysis + generation – Dolby streaming, metering, timing
PHSXO-ENG
Engineering bundle (*) – PHSXOS,PHSXOSD,PHSXOR,PHSXOZ,PHSXOF,PHSXO-DAG (price includes 40% discount)
Accessories
PHSXWM Sx Wall mounting bracket for easy charging (does not include the charger)
Extended Warranty
PHSXA-3YEAR SxA Upgrade from 1 to 3 Year Warranty
PHSXA-5YEAR
SxA Upgrade from 1 to 5 Year Warranty
*One year warranty included as standard
