SxE
Portable 3G/HD/SD Generation, Analysis & Monitoring withAdvanced Physical Layer Analysis VIEW BROCHURELIVE DEMO
Advanced Physical Layer Toolset
With advanced SDI physical layer analysis (Eye & Jitter), the SxE is ideal for applications such as video technology manufacturing and live production.
The instant, RTE™ (Real-Time Eye) technology speeds physical layer testing, and delivers automated measurements and logging for key parameters such as: rise time, fall time, delta, overshoot, undershoot and cable length. The Jitter analysis instrument enables an engineer to quickly analyze the nature of jitter present using a graph of jitter versus time.
The SxE also now offers automatic link detection of single links of multi-link 3G and HD based UHD formats.
SxE KEY FEATURES
EXTENSIVE VIDEO TOOLSET
With simultaneous signal generation and analysis, its built-in core toolset includes a multi-format waveform, vectorscope and video display, plus data view and VANC/ANC inspector. Over 350 formats are supported for compliance monitoring. Signal generation offers 32 test patterns, including pathological.
ADVANCED PHYSICAL LAYER TOOLSET
The instant, RTE™ (Real-Time Eye) technology speeds physical layer testing, and delivers automated measurements and logging for key parameters such as: rise time, fall time, delta, overshoot and cable length. The Jitter analysis instrument enables quick analysis of the nature of jitter using a graph of jitter versus time.
AV DELAY GENERATION AND ANALYSIS
AV Delay Generation and Analysis offers an end-to-end solution for the measurement of Audio to Video differential delay through a broadcast system. The tool provides a realtime update of the differential delay between the video content and the selected audio channel pair to measure the propagation (latency) or pipeline delay.
ULTRA PORTABLE, RUGGED DESIGN
The SxE offers great mobility with a lightweight, rugged aluminium case with integral, high quality screen for instrument display and video monitoring. The generator/ analyzer operates via rechargeable lithium battery for up 2 hours, and can also be powered by the mains to offer flexible operation around facilities.
ENHANCED REMOTE CONTROL
The SxE features a TCP/IP interface for remote control, automated testing, engineering support and fault analysis. Comprehensive status logging with custom reports, together with instrument picture capture to simplify fault finding is also included.
MULTI-CHANNEL AUDIO ANALYSIS
The SxE features support for 16-channel audio metering and bitstream generation and analysis of Dolby E, Dolby Digital and Dolby Digital Plus. Embed a single external 48kHz synchronous AES stream into the generated video stream, as well as extract embedded audio and export it via the AES output.
In Action:
Cingularity selects PHABRIX Sx for power and portability on sports broadcasts
PHABRIX, a worldwide leader in test and measurement solutions, has supplied three Sx handheld 3G/HD/SD video/audio monitoring instruments and an Rx 2000 rasterizer to Cingularity, the media network provider, for monitoring on location at two upcoming sporting events.
SxE TOOLSETS
SxE Advanced Physical Layer Analysis
Eye and Jitter Meas.
- SxE offers instant, Real-Time Eye (RTE™) for rapid testing SMPTE SDI compliance and interop issues
- SMPTE compliant automated measurements for rise time, fall time, delta, rise and fall overshoot and cable length
- Flexible display of between 1 to a maximum of 20 eyes with Amplitude and Time Histograms
- Selectable: Decade filters, Eye color for 'hot spot' view, two Jitter timing/UI thermometers with green/amber/red indication, 40ms or infinite Persistence, choice from 6 Cable types

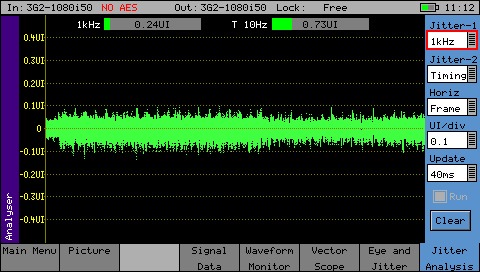

Jitter Analysis
- Using realtime Jitter analysis, an engineer can not only determine if a signal is in or out of specification, but also get a feel for where any problems lie. A spiky waveform could indicate power supply noise and these visual clues aid the diagnosis
- Decade filter and jitter timing/UI thermometers are common to the Real-Time Eye Display giving consistent indication of the effect of the decade filter across the two instruments
- Line or Vertical Time base selection, Vertical Gain and Persistence controls, 40ms or infinite Persistence

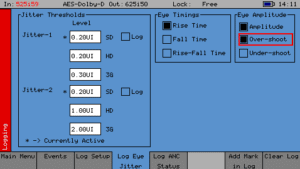

Eye and Jitter Logging
- SxE’s eye and jitter logging tools provide user-selectable logging of jitter thresholds in two different decade filters.
- User selectable logging of:
- Eye timing: Rise time, Fall time, Rise-Fall time
- Eye amplitude: Amplitude, Overshoot and Undershoot
SxE Generator
Video Generator
- The Sx can create video test signals for all supported SD and HD SDI output standards including the 3GHz standards at 1080p/50/59/60 Y, Cb, Cr
- Advanced video formats include support for RGB, XYZ 12bit and 2K formats
- A fully programmable Y Zone Plate
Audio Generator
- The Sx can embed an audio signal on all 16 embedded audio outputs
- The Audio Group menu controls which audio channels are present, signal type and amplitude
- Choice of: silence, adjustable tone, noise, AV Delay, Dolby test stream or AES input
Reference Generator
- The Sx instrument can create video test signals that are either free-running or locked to a studio reference or input signal
- The Genlock menu is used to select the locking reference and provides a control for genlock phase offset in lines and pixels
- User control of Free Run frequency with +/- 100ppm pull range for SDI interface acceptance checking
AV Delay Generation
- Adapted EBU Tech 3305 AV Sync and Operational Test Pattern to support SD and HD formats
- Compatible with third party AV delay analysers e.g.:LAWO V_pro8
- Enable AV Delay audio on up to 16 embedded channels and/or AES out
Adv. Video Formats
- Optional Software Licence | Order Code: PHSXOF
- 3G level A and B
- 4:2:2 YUV, 4:4:4 RGB and 4:4:4 YUV at 10/12 bit and XYZ at 12 bit
- 2048 x 1080 (2K) SMPTE ST 428-9 and digital cinema 2048-2:2011
Adv. Zone Plate
- Optional Software Licence | Order Code: PHSXOZ
- Choice of Zone Plate, Grating or Sweep Patterns
- Sophisticated control set including: Start and End Frequency, Start Phase, Rate of change of Phase, Angle, and X and Y position
- Temporal control is particularly useful for testing image processors and compression codecs
SxE Analyzer
Picture Monitor
- The picture is displayed in a window as a down-converted display
- A cursor may be turned ON over the area of the picture specified by the specified line and sample
- Monitor device input or output
Picture Zoom
- Zoom function provides a 1:1 unfiltered pixel view, centred on the position of the picture cursor
- HANC/VANC areas visible when cursor in blanking
Linked Cursors
- The picture cursor is linked to waveform, vectorscope and data views for rapid and accurate detailed measurement of the signal
Waveform Full Frame
- Displays selected analyzer or generator source
- Analog locking reference input view (TAG only)
- YCbCr GBR, Y, Cb, Cr, R, G, B modes
- Cursors may be displayed over the waveform to allow measurement of time or amplitude values
- Vertical and horizontal magnifications
Waveform Line Select
- The display may be restricted to a single line or all lines may be displayed at the same time
- The single line display is linked to the picture, vectorscope and data view
Vectorscope
- Choice of 100% or 75% graticules
- Display the Composite, SDI, SFP video input or the generator test pattern
- Display a specific video line linked to picture cursor
- x1, x2, x5 or x10 magnifications with position to centre, cyan, yellow, green, magenta, red, blue graticule locations
AV Delay Analysis
- Optional Software Licence | Order Code: PHSXO-AVD
- Support for adapted EBU Tech 3305 AV Sync and operation test pattern
- Support for LAWO V_line AV Sync test pattern
- Real time update of measured AV delay
- +/- 400ms operating range
- Select audio from SDI or AES input
SDI Data Display
- Optional Software Licence | Order Code: PHSXOSD
- This instrument provides a detailed view of the data words contained within the SDI stream
- This is particularly useful when debugging complex faults or in an R&D environment
- Cursor link for locating chosen packet in data view/picture windows
VANC/ANC Inspector
- Optional Software Licence | Order Code: PHSXOSD
- This instrument provides a detailed view of the ancillary data (VANC and ANC) packets
- The ancillary packet analyzer also includes a DID or SDID search editor, freeze and freeze on trigger function
- User-definable trigger parameters include: DID and SubDID values, line number range, Checksum, DBN, Parity and ANC Gap Errors
SxE Control
Screen Grab
- Screen grabs can be saved and downloaded via a web browser or FTP transfer
Web Browser
- View and control the instrument display over a TCP/IP interface with a standard browser
- Ideal for remote location checking, engineering support, and fault analysis
- Allows access to key functions including screen dumps, loudness files and logging files
PC Simulator
- A free Sx simulator PC application is available on the PHABRIX website
- Indicates command IDs for automation programming
SxE Audio
16 Channel Metering
- Display up to 16 audio channels
- The source for each block of 8 meters may be independently set to allow metering of embedded audio inputs or outputs
- The current audio level in dBFs (decibels relative to 0dB full-scale) is displayed at the bottom of each meter
AES/Analog Meters
- AES and Analog (TAG) audio metering available as an alternative to embedded audio
- Dolby E metering selection
Audio Channel Status
- The Audio Status menu shows the Channel Status for the selected audio channel
- Displayed in decoded form as well as a raw hexadecimal data dump
- The source may either come from the input signal or from the generator output for rapid comparison purposes
Dolby Status
- Optional Software Licence | Order Code: PHSXO-DAG
- Dolby Audio bitstream Analysis for Dolby E, Dolby Digital and Dolby Digital Plus
- The main menu window provides a clear and easy to read status of the detected type of audio in each group with a snapshot of the Dolby program config. and Dolby E guard band timing
- All Dolby related metadata parameters can be logged
Dolby Analyzer
- Optional Software Licence | Order Code: PHSXO-DAG
- Display of stream type, metadata of a selected audio stream, PA spacing and any CRC errors.
- Dolby E SDI timing relationship with indication of the recommended line position
- Logging triggers for errors relating to Dolby Audio include CRC errors, timing, and common and program metadata
Dolby Generator
- Optional Software Licence | Order Code: PHSXO-DAG
- This toolset provides pre-configured Dolby Audio test bitstreams for Dolby E, Dolby Digital and Dolby Digital Plus.
- Engineers can then adjust both Dolby E, the metadata parameters, and the Dolby E line number to test broadcast infrastructure and downstream audio encoding equipment
Dolby Metering
- Optional Software Licence | Order Code: PHSXO-DAG
- The detected Dolby Audio type is displayed in the audio meters
- Dolby Audio is not decoded
- Dolby E metering is provided
SxE System
Instrument Presets
- Current settings in the Sx instrument can be saved as memories for future recall
- Memories can be exported to a single file, reimported or copied to other units
- Presets can be applied to the whole instrument or selectively within the Generator or Analyzer
Network Configuration
- The Network menu allows the Sx instrument to be configured as part of a network
- Support for automatic acquisition of network parameters via DHCP or manual configuration
- Remote control enable/disable and selection of port number
Software Status
- Serial number, Sx instrument MAC address, version information and battery state listed
- The date and time can be set and factory default settings recalled
- Display of loaded license options
- LCD brightness and screen saver configurations
Engineer Setup
- Manage the Sx's settings including user access, clearing memories, factory default reset, software upgrades and audio calibration
- SDI input to SDI output loop through mode
- Control of SDI to IP-SFP gateway in Sx TAG
Utils
- Details of the unit's operating status
- Details the temperature and individual board voltages
- Lists any hardware errors that have been recorded
Enh. Remote Control
- Optional Software Licence | Order Code: PHSXOR
- This option allows complex applications to be created on a PC to perform automated test and measurement functions
- PHABRIX instruments act as a server and listen on a port waiting for incoming requests from a client
- All visual controls on the product have an associated command
Command Scripts
- Optional Software Licence | Order Code: PHSXOS
- The savings in time and the ability for an engineer to run a script to check equipment and return with a report is invaluable
- Create a stack of commands for repeat testing of systems using the toolsets within the Sx series by user defined operator name
- Command scripts can be created on the interface or created offline on a PC
HTML Reporting
- Optional Software Licence | Order Code: PHSXOS
- When ‘run’ reports are generated, they auto fill an on-board html file that can then be downloaded via the remote control facility and printed as a hard paper copy. The report also collects screen dumps of the instruments to accompany the report if required
- Users can add their own logo to personalize the reports
SxE Signal
Video Timing
- Display the relationship between the selected video input with respect to the external reference input
- Offset feature to simplify system timing measurements
Video Status
- Display the status of the selected video input or output and any errors that have been found in the data stream
- Display of EDH, Active Picture and CRC data with a cumulative run-time display of errors and error rate
- Display of estimated cable length for SDI inputs with selectable cable type
ANC Status
- Shows which ANC packets are present on the SDI input and whether any errors have been detected
- Each field is color coded according to whether the ANC packet is present (White), missing (Grey), has errors (Red), or has previously had errors (yellow)
Video Format/Payload
- The updated Misc Status menu provides an easy to read side by side status view of SMPTE 352 Video Payload Packets (VPID) embedded in the selected video input and displays any errors that have been found
- Support single links of multi-link 3G and HD based UHD formats
- Selection of input or output for rapid comparison
- Display of raw data and decoded form
SxE Logging
Log Setup
- Set Audio Thresholds and log specific video status events, including Output, Reference and Input Status, TRS Errors, Picture CRC
Event Log Display
- The Event Log menu displays a list of events with a time stamp showing when they occurred
ANC Log Setup
- The Log ANC Status menu allows customization of which ANC packets to log for changes in status (e.g. Present, Checksum Error, Missing, Parity Error)
- Logging of Dolby and AES Status as well as device system errors
- Control of logging duration
- The Log ANC Status menu allows customization of which ANC packets to log for changes in status (e.g. Present, Checksum Error, Missing, Parity Error)
- Logging of Dolby and AES Status as well as device system errors
- Control of logging duration
READY TO TRANSFORM YOUR TEST & MEASUREMENT TOOLKIT?
SxE SPECIFICATIONS
Monitor Details | |
Display resolution | 480 x 272 pixels auto scaling |
Display type | 16:9 24 bit color TFT |
Display size | 95 x 54 mm |
Processing | All digital |
Video | |
SDI | 3G-SDI, HD-SDI SD-SDI |
Outputs/Inputs | 1 x 75 Ohm BNC |
Genlock | Bi/Tri/SDI with cross lock |
Adjustable timing | 0 to 1 Frame |
Text Ident | Yes with font, color and point size |
Logo ident | Yes |
EDH | Yes (SD-SDI) |
Video Test Signal | |
Resolution | 10 bits |
Static Test patterns | 32+ including full frame |
Moving Zone Plate | Yes |
User defined | DPX,YUV,TGA,BM |
Formats | To be supplied on request |
Eye bit rates | 3Gbps, 1.485Gbps, 270 Mbps |
Jitter | SMPTE specification filters |
Jitter thermometers | Alignment, Timing |
Audio | |
Internal speaker | 0.5 watts |
Audio DAC | 24 bit stereo |
Headphone socket | 3.5 mm with auto line out |
Generator/Monitor | 48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI) |
16 channel embedded audio | Yes |
AES Output/Input | 1 x 75 Ohm BNC |
Audio Test Signal | |
Fixed tones | 17 |
Variable tones | 1 Hz-24 Khz in 1Hz steps |
Intermittent Tone | Yes |
White noise generation | Yes |
Audio levels variable | 0 to -100dB in 1dB steps |
Audio phase invert | Yes |
General | |
Navigation panel | 5 menu keys 8 custom select/program |
Integral battery supply | Yes |
Internal Storage | 8GB (upgradable) |
Remote control | Web browser interface |
Ethernet/USB | Yes |
Carry case | Included |
AC power supply | Included |
Security | Kensington lock fitting |
Size/Weight | 0.7kgs, H:92mm W:225mm D:42mm |
SxE ORDERING
SxE | |
PHSXE | SxE Handheld Instrument – SD/HD/3G Hand held complete unit |
Software Options | |
PHSXO-AVD | AV Delay Analysis – Analyser supports EBU and LAWO AV delay sequences |
PHSXOS | * Command Scripts + Reports – Repeat testing + create print report |
PHSXOSD | * SDI Data display + VANC/ANC Inspector – Detailed SDI data display |
PHSXOR | * Enhanced Remote Control – TCP/IP sockets based remote control |
PHSXOZ | * Zone plate generator – Programmable zone plate generator |
PHSXOF | * Advanced video formats + 2K – 422/444, YUV/RGB, 10/12 bit, SMPTE 428-9 D-Cinema/SMPTE ST 2048-2:2011 |
PHSXO-DAG | * Dolby E/D/D+ analysis + generation – Dolby streaming, metering, timing |
PHSXO-ENG | Engineering bundle (*) – PHSXOS,PHSXOSD,PHSXOR,PHSXOZ,PHSXOF,PHSXO-DAG (price includes 40% discount) |
Accessories | |
PHSXWM | Sx wall mounting bracket for easy charging (does not include the charger) |
Extended Warranty | |
PHSXE-3YEAR | SxE Upgrade from 1 to 3 Year Warranty |
PHSXE-5YEAR | SxE Upgrade from 1 to 5 Year Warranty |
*One year warranty included as standard |
