LV5300A

Waveform Monitor

4K | 12G-SDI | 3G-SDI | HD-SDI | SD-SDI | HDR

ZEN Series
Compact instrument specifically designed for SDI video signals



VIEW BROCHURECONTACT SALES

Compact Waveform Monitor without sacrificing performance, supporting SDI signals upto 12G and including physical layer testing.

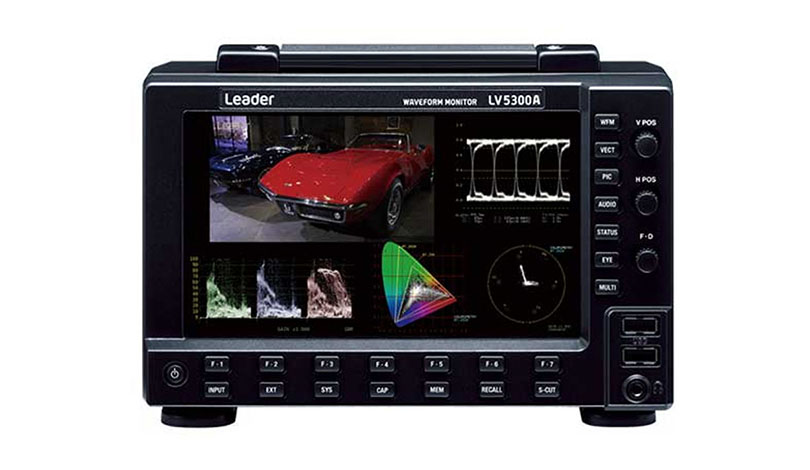

The LV5300A Waveform Monitor is compact without sacrificing performance, supporting SDI signals from SD through 12G rates and including physical layer testing. The LV5300A is a 3U half-rack, short-depth waveform monitor with a built-in 7-inch touch screen display and a full array of buttons and control knobs.

The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.

The LV5300A has a DC power input, which enables it to be used in locations where AC power supplies are not available. Moreover, the LV5300A can be battery-operated by installing a battery mount option. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5300A allows complex measurement and monitoring tasks to be quickly completed in almost any environment.

KEY FEATURES

Supports various signal inputs

It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 4K 3G-SDI dual link.

Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, video signal quality (QoE) freezes error, error black, gamut error detection, etc. are equipped as standard equipment.

Eye Pattern Display

Display eye pattern waveform, jitter waveform of SDI signal, measurement result of each parameter. A histogram is also displayed.

In addition, an eye pattern when selecting a filter of 100 kHz or more (alignment jitter) and an eye pattern when selecting a filter of 10 Hz or more (timing jitter) can be displayed at the same time. Only input terminal 1 corresponds to eye pattern display.

Focus Assist

This is a focus detection function realizing a new algorithm based on nonlinear super resolution technology. The focus details can be detected with high sensitivity even with low-contrast images, which were conventionally difficult to detect. In addition, sensitivity can be selected from 5 levels according to the video scene.

Touch Operation & Customizable Layout

The LV5300A adopts a 7-inch full HD panel with a touch panel function.

Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

HDR Monitoring

In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.

The video signal waveform displays HDR scale along with the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area in monochrome, and the HDR with a color according to the brightness.

TALLY

Serial communication RS-422/485 terminals enable to display camera ID, and tally. Fast switching of tally display by remote terminal is also possible.

3D-LUT Function

By loading a 3D-LUT cube file, the 3D-LUT can be converted in real time to support various measurements and conversion outputs.(SER23 option is required.)

Supports Full Range SDR

Supports waveform display, vectorscope, CIE chart, histogram, CineLite, CineZone, and full range of DPX and TIFF file capture.

False Colour Display Support

False colour display can be added to pictures, making it easy to determine highlights, human skin tones, 18% gray, blacks, etc.

TOOLSETS

Standard Functionality

Optional Functionality

Waveform Monitor

slide2
slide3
slide4
slide5

Vectorscope

slide2
slide3
slide4
slide5


slide2
slide3
slide4
slide5
slide6
slide7

Audio

slide2

Status

slide2
slide3
slide4
slide5
slide6

Eye Display

slide2
slide3

Other

slide2
slide3
slide4
slide5
slide6

Embedded Audio Analysis

Option Code – SER20

slide2
slide3

HDR Measurement

Option Code – SER23

slide2
slide3

SDI Generator Function

Option Code – SER24

slide2

Focus Assist Function

Option Code – SER25

slide2
slide3

Customised Layout Function

Option Code – SER26

slide2
slide3
slide4
slide5
slide6

ID, Iris, TALLY Display Function

Option Code – SER27

slide2

4K Video Signal Compatible Function

Option Code – SER28

slide2
slide3
slide4

Extended Vectorscope Display

Option Code – SER40

slide2

READY TO TRANSFORM YOUR TEST & MEASUREMENT TOOLKIT?

Rear Panel I/O

ORDERING

Hardware Options

Model Product Name Function
LV5300-SER11 Battery adapter V-Mount V mount type battery adapter
LV5300-SER12 Battery adapter QR-Gold QR gold mount type battery adapter

* The LV5300-SER11 and LV5300-SER12 are factory options.
* The LV5300-SER11 and LV5300-SER12 cannot be installed in the instrument at the same time.

Software Options

Model Product Name Function
LV5300-SER20 AUDIO Embedded audio analysis
LV5300-SER21 CLOSED CAPTION Japanese, EIA-608, 708, and TELETEXT closed caption display function
LV5300-SER22 CIE CIE chromaticity diagram display function
LV5300-SER23 HDR HDR measurement function
LV5300-SER24 TSG SDI signal generation function *
LV5300-SER25 FOCUS ASSIST Focus assist display function
LV5300-SER26 LAYOUT Customized layout function
LV5300-SER27 TALLY Tally display function
LV5300-SER28 4K 4K format support(12G-SDI/6G-SDI/3G-SDI Dual)
LV5300-SER40 EXTENDED VECTOR RGB Vector, YCbCr Vector

* You need the LV5300-SER28 to output 4K patterns on the LV5300-SER24.

Related accessories

Product Name Model Remarks
RACKMOUNT ADAPTER LR2530 Dual rack mount adapter for the LV5300(A)/LV5350.
Two LV5300(A) / LV5350 can be mounted in an EIA 19-inch rack.
(Two options of LV5300(A) + LV5350 need separately option compatibility.)
BLANK PANEL LC2535 Blank panel for the LR2530
AC ADAPTER GST90A12 AC adapter for LV5300(A)/LV5350/LV7300 (not included as standard)
REMOTE CONTROLLER LV7290 Ethernet connection remote controller
