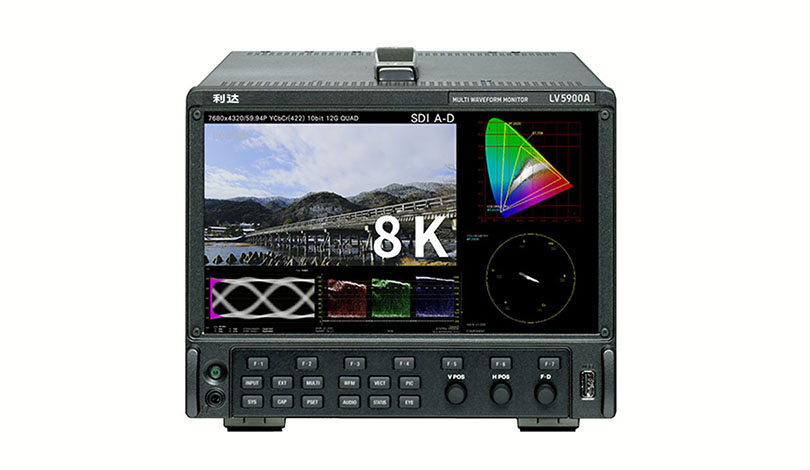

LV5900A

Waveform Monitor

8K | 4K | 12G-SDI | 3G-SDI | HD-SDI | HDR

Compact instrument specifically designed for SDI video signals





VIEW BROCHURECONTACT SALES

 Compact Waveform Monitor without sacrificing performance, supporting SDI signals up to 12G rates.

The LV5900A waveform monitor supports SMPTE ST 2082-12, which is used to receive 7680 (8192)×4320/59.94P YCBCR 10- bit 8K video via 12G-SDI QUAD LINK. As it supports not only 8K but also a 4K input and four simultaneous HD inputs, you can use it as a high-end 8K system and switch between other systems as needed. The waveform, vector, picture, and eye pattern displays allow for the measurement and quality control of various video signals. The status display allows you to view various error statuses and check on system stability by viewing event logs and long-term charts.

KEY FEATURES

2K/4K/8K Video Formats

Video formats support includes SDI signals in various formats ranging from, 8K video format with quad link of 12G-SDI, 4K video format with the single link of 12G-SDI, dual link of 6G-SDI, quad link of 3G-SDI and quad link of HD-SDI, in addition to the single link of HD-SDI and 3G-SDI.

8K Square Division

The LV5900A also supports 8K divided into 4K sized squares. While the 8K square division system is not included in the television signal standard, it is a system used when existing 4K equipment is repurposed to partially process the video signal in each area.

4K/12G-SDI Simultaneous Display

In the case of 12G-SDI, two 4K inputs can be displayed simultaneously.

Customisable Layout

Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

HDR Monitoring

In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.

The video signal waveform displays HDR scale along with the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area in monochrome, and the HDR with a color according to the brightness.

TALLY

Serial communication RS-422/485 terminals enable to display camera ID, and tally. Fast switching of tally display by remote terminal is also possible.

Eye Pattern Display

Both eye-pattern and jitter displays are available for SDI signals covering from HD-SDI through 12G-SDI. The LV5900A automatically calculates key eye measurement values. Furthermore, a histogram can be superimposed on the eye pattern display for more detailed physical layer evaluation.

Focus Assist

This is a focus detection function realizing a new algorithm based on nonlinear super resolution technology. The focus details can be detected with high sensitivity even with low-contrast images, which were conventionally difficult to detect. In addition, sensitivity can be selected from 5 levels according to the video scene.

TOOLSETS

Standard Functionality

Waveform Monitor

slide2
slide3
slide4
slide5

Vectorscope

slide2
slide3
slide4
slide5


slide2
slide3
slide4
slide5
slide6
slide7

Audio

slide2

Status

slide2
slide3
slide4
slide5
slide6

HDR Measurement

slide2
slide3

SD, HD, 3G SDI Input and EYE Pattern Display

slide2
slide3

SDI Generator Function

slide2

Colorimetry Zone Display

slide2

Focus Assist Function

slide2
slide3

Customised Layout Function

slide2
slide3
slide4
slide5
slide6

ID, Iris, TALLY Display Function

slide2

Extended Vectorscope Display

slide2

Other

slide2
slide3
slide4
slide5
slide6

READY TO TRANSFORM YOUR TEST & MEASUREMENT TOOLKIT?

Rear Panel I/O

ORDERING

Related accessories

Product Name Model Remarks
RACKMOUNT ADAPTER LR2490 Dual rack mount adapter.
BLANK PANEL LC2190 Blank panel for the LR2490
